Project Four: Synthetic Math/Code Textbook

Scenario: Enhance small model logic reasoning ability.

Core Technology: Evol-Instruct evolution strategy, Python code execution sandbox (Sandbox) verification, PoT (Program of Thought) data formatting.

Output: High-quality synthetic reasoning dataset after verification.

1. Project Background (Project Brief)

• Task Definition: Build a high-quality "Program of Thought" (PoT) dataset. We use LLMs (DeepSeek-V3) to "evolve" simple math problems into complex word problems, generate corresponding Python code solutions, and verify answer correctness through code execution sandbox.
• Input and Output:
  • Input: Base math datasets (e.g., GSM8K, MBPP) raw JSONL files.
  • Output: Cleaned JSONL dataset containing question (evolved problem), thought_process (code solution reasoning), execution_output (execution result).
• Challenge Analysis: This project's biggest difficulty is "hallucination elimination." LLM-generated code often looks correct but cannot run (syntax errors or logic bugs). We need to build automated "Sandbox" to filter out non-executable samples, ensuring "textbook" rigor.

2. Architecture Design (Architecture Design)

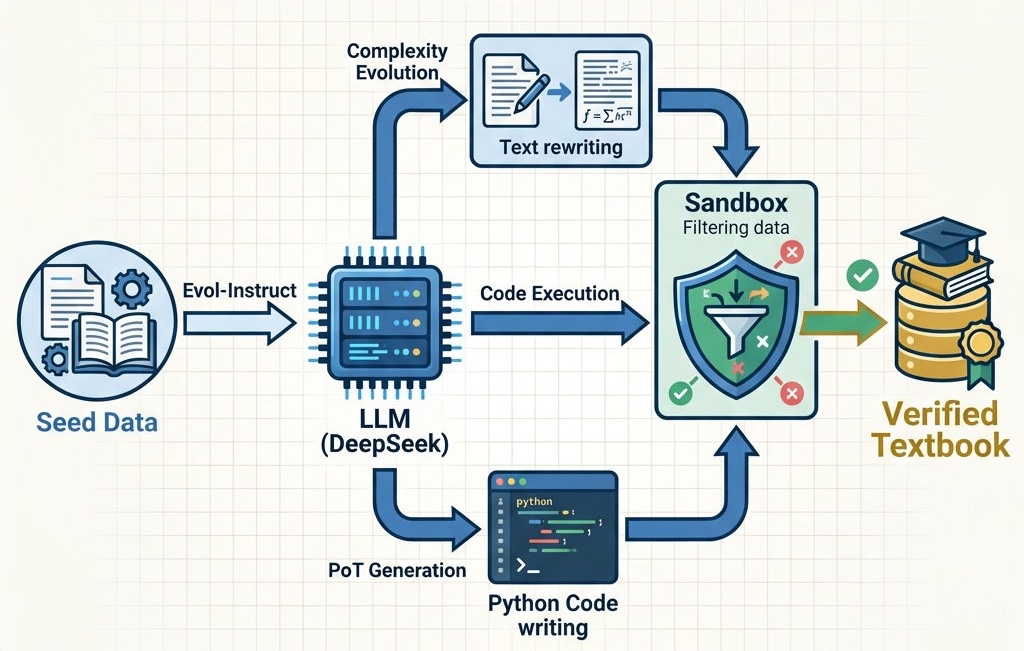

Data Pipeline Diagram

Technology Stack

• Data Source: HuggingFace Datasets (GSM8K/MBPP).
• Generation Engine: DeepSeek-V3 (via SiliconFlow API) —— cost-effective code generation model.
• Orchestration Logic: Python scripts (Evol-Instruct strategy).
• Verification Environment: Python subprocess (local sandbox) —— production recommend Docker or MicroVM.

3. Step-by-Step Implementation

Phase 1: Seed Data Acquisition (Seed Preparation)

Everything starts with high-quality seeds. We don't need massive data—just representative logic cores.

Key Actions: 1. Download GSM8K (math) and MBPP (code) data. 2. Random sample as "evolution" foundation.

Glue Code (Data Sampler): Code from download_data.py and sampler.py

# Core logic: Extract seeds from massive data, keep only Question field
# Original Answer discarded because we let model regenerate code-based solution
sampled = random.sample(data, SAMPLE_SIZE)
for entry in sampled:
    seed_entry = {
        "id": random.randint(1000, 9999),
        "seed_question": entry['question'], # Keep only question
        "original_answer": entry['answer']  # For reference only
    }

Phase 2: Evol-Instruct and PoT Generation (Evolution & Generation)

This is the project core. We can't just do simple "Q&A pairs"—we need the model to think like a human expert.

Flow Logic: 1. Evol (Evolution): Rewrite simple problems (e.g., "1+1=?") into complex scenarios (e.g., "Xiaoming has 1 apple, affected by inflation..."), adding constraints. 2. PoT (Code solution): Force model to write Python code to solve, not directly output text answer.

Core Prompts (Prompt Engineering): Code from evol.py

def get_evol_prompt(seed_question):
    return f"""
    You are a professional math competition problem composer. Please rewrite the following basic math problem into a more complex, logically rigorous one.
    【Original】: {seed_question}
    【Rewrite Requirements】:
    1. Add constraints: Introduce more variables or limitations.
    2. Add reasoning depth: Don't give numbers directly; have logical relationships between numbers.
    3. Scenario-ize: Put abstract numbers into concrete physical or business scenarios.
    ...
    """

def get_pot_prompt(evolved_question):
    return f"""
    Please write Python code to solve the following math problem.
    ...
    1. Write a function named `solve()`.
    2. Clearly write reasoning steps in code comments.
    3. `solve()` must return the final numerical answer.
    ...
    """

Phase 3: Sandbox Verification

Generated data has large amounts of "dead" samples (Syntax Error, Timeout, Loop). Must verify through execution.

Sandbox Logic: 1. Use regex to extract code blocks from Markdown. 2. Start subprocess (subprocess) to execute code. 3. Critical: Set timeout to prevent infinite loops from blocking pipeline.

Verification Script: Code from sandbox.py

def execute_code(code, timeout=5):
    """
    Execute Python code and get output.
    WARNING: This function should only be called in strongly isolated sandbox (minimal privilege container/micro-VM, no network, restricted filesystem).
    To prevent accidentally executing arbitrary code in host environment, will raise exception if sandbox not explicitly declared.
    Can explicitly allow by setting environment variable EXECUTE_CODE_SANDBOXED=1 inside sandbox container.
    """
    # Basic protection: Prohibit executing arbitrary code in undeclared sandbox
    if os.environ.get("EXECUTE_CODE_SANDBOXED") != "1":
        raise RuntimeError(
            "execute_code can only be used in controlled sandbox environment; "
            "please set environment variable EXECUTE_CODE_SANDBOXED=1 in isolated container/micro-VM before calling."
        )
    try:
        # Use subprocess to start independent process
        result = subprocess.run(
            ['python3', '-c', code],
            capture_output=True,  # Capture stdout
            text=True,
            timeout=timeout,      # Must set timeout!
            check=False,
        )
        if result.returncode == 0:
            return True, result.stdout.strip()
        else:
            return False, f"Error: {result.stderr.strip()}"

4. Results Showcase (Showcase)

After sandbox cleaning, we get verified_textbook.jsonl. This is textbook-grade synthetic data.

Data Sample Comparison:

Phase	Content Example
Original Seed	Jenny has 5 apples, ate 2, how many left?
Evol Evolution	Jenny runs a fruit store with 5 crates of apples (12 per crate). Monday she sold 40% of inventory, and 2 single items spoiled from improper storage. Please calculate the exact number of remaining sellable apples.
PoT Solution	def solve(): total = 5 * 12; sold = total * 0.4; ... return remaining
Execution Result	34 (verified, saved to dataset)

Verification Statistics: Typically, post-Evol code one-shot pass rate (Pass@1) is 60%-80%. The 20% error data filtered by sandbox are exactly the ones that would pollute model training—removing them significantly improves SFT model logic consistency.

5. Cost and Optimization (Cost & Optimization)

• Resource consumption:

  • API cost: Each valid sample consumes ~2 LLM calls (evolution + solution). Using cost-effective models like DeepSeek-V3, generating 1k high-quality textbook samples can be controlled under $5.
  • Time cost: Local Python single-threaded is slow; verifying 1k code samples takes ~5-10 minutes.

• Security Warning (Critical):

  • This project uses subprocess for local execution. When processing unknown or untrusted model-generated code, extremely high risk exists (e.g., os.system('rm -rf /')).
  • Production transformation plan: Must migrate sandbox.py execution environment to Docker container or AWS Firecracker micro-VM, with network access disabled.

• Scaling considerations:

  • If data scales to millions, single-machine script cannot support. Need to introduce RabbitMQ or Kafka for task distribution, building distributed "generate-verify" cluster.
