Project Three: Building LLaVA Multimodal Instruction Dataset

Scope: Multimodal LLM (LMM) development, data engineering, visual instruction tuning (Visual Instruction Tuning)

1. Project Background (Project Brief)

  • Task Definition: Build a high-quality visual instruction fine-tuning dataset supporting single-image QA (Visual QA), object localization (Grounding), and multi-image context reasoning (Interleaved Image-Text), for training multimodal models like LLaVA or Qwen-VL.

  • Input and Output:

  • Input:
    • Raw image library (.jpg / .png)
    • Structured annotation data (e.g., COCO-format instances.json with Bbox coordinates)

  • Output:

    • JSON files conforming to LLaVA training standard (with image, conversations fields).
    • Grounding data with coordinate normalization and format alignment.

  • Challenge Analysis:

  • Coordinate alignment (Coordinate Alignment): Raw detection data coordinates are typically pixel absolutes (x, y, w, h), while LLaVA requires normalization to [0-1000] range with order [ymin, xmin, ymax, xmax]—once wrong, model suffers severe "hallucination."
  • Multi-image logic construction: Traditional Image-Caption data is one image one text; building "multi-image interleaved" dialogue requires constructing reasonable comparative Prompts to induce model to understand inter-image relationships.

2. Architecture Design (Architecture Design)

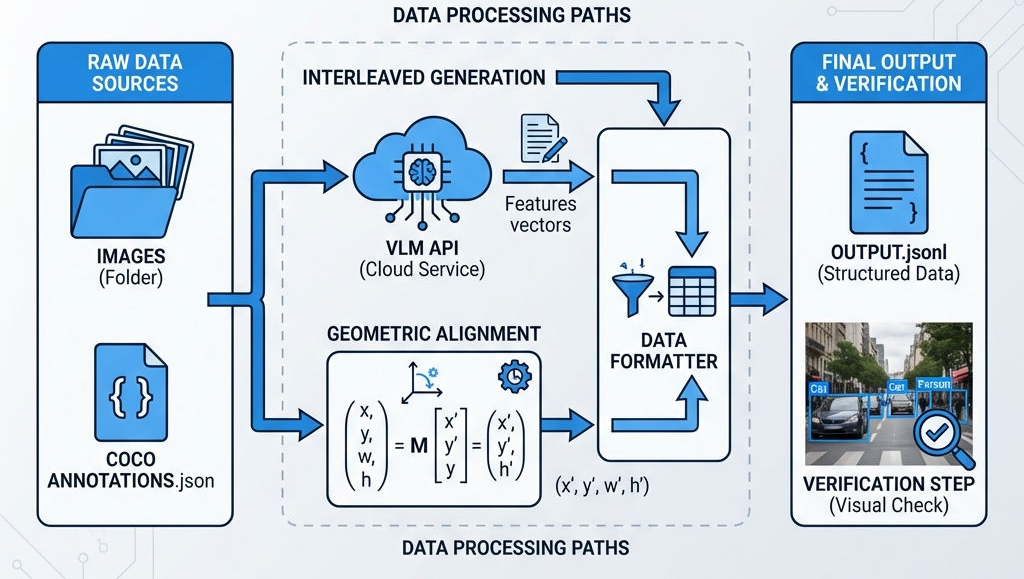

  • Data Pipeline Diagram: Figure 3: Building LLaVA Multimodal Instruction Dataset

  • Technology Stack:

  • OpenAI Compatible API (SiliconFlow/Qwen): For generating high-quality image-text descriptions and multi-image comparison logic; leverages LLM reasoning for dialogue construction.
  • Python & OpenCV: Core glue language. OpenCV essential for reading image dimensions (H, W) for coordinate normalization and "draw-box verification" visualization.
  • JSON: LLaVA standard data exchange format.

3. Step-by-Step Implementation

Phase 1: Multi-Image Interleaved Data Generation

To teach the model to "compare" two images, we use API to dynamically input multiple images and request comparison.

Key Logic: Use VLM API to construct multi-image input Prompt.

# From interleaved.py
def generate_comparison(img1_path, img2_path):
    # Construct Prompt: Require multi-image comparison
    prompt = "Here are two images. Please briefly compare them..."

    # Build multi-image payload
    messages=[
        {
            "role": "user",
            "content": [
                {"type": "text", "text": prompt},
                {"type": "image_url", "image_url": {"url": f"...{img1_path}..."}}, # Image 1
                {"type": "image_url", "image_url": {"url": f"...{img2_path}..."}}  # Image 2
            ]
        }
    ]
    # ... send request and parse result ...
Phase 2: Core Processing—Bounding Box Alignment

This is the project's core math. COCO uses [x_topleft, y_topleft, width, height] while LLaVA needs [ymin, xmin, ymax, xmax] with values normalized to 0-1000 integers.

Key Function: Coordinate normalization conversion

# From alignment.py
def convert_bbox(bbox, width, height):
    # COCO raw input: x, y, w, h
    x, y, w, h = bbox

    # Convert to LLaVA format: [ymin, xmin, ymax, xmax] normalized to 0-1000
    # Must use max/min for clipping to prevent float error overflow
    xmin = int((x / width) * 1000)
    ymin = int((y / height) * 1000)
    xmax = int((x + w) / width * 1000)
    ymax = int((y + h) / height * 1000)

    return [
        max(0, min(1000, ymin)),
        max(0, min(1000, xmin)),
        max(0, min(1000, ymax)),
        max(0, min(1000, xmax))
    ]
Phase 3: Formatting and Verification

Data generation must not go directly to training. Must pass visualization reverse verification. If our drawn boxes are wrong, the trained model will be useless.

Verification Logic: Parse generated JSON, restore [0-1000] coordinates to pixel coordinates and draw.

# From visualize_bbox.py
def draw_bbox(image, bbox, label, color):
    h, w, _ = image.shape
    ymin, xmin, ymax, xmax = bbox # Read LLaVA format

    # Restore to pixel coordinates for drawing
    x1 = int(xmin / 1000 * w)
    y1 = int(ymin / 1000 * h)
    x2 = int(xmax / 1000 * w)
    y2 = int(ymax / 1000 * h)

    # OpenCV draw box
    cv2.rectangle(image, (x1, y1), (x2, y2), color, 2)
    # ...

4. Results Showcase (Showcase)

1. Data Structure Example: Final generated llava_instruct.json has this standard structure, directly readable by Training Pipeline:

{
  "id": "1296_laptop",
  "image": "000000001296.jpg",
  "conversations": [
    {
      "from": "human",
      "value": "Where is the laptop in the image? <image>"
    },
    {
      "from": "qwen",
      "value": "The laptop is located at [350, 201, 680, 505]."
    }
  ]
}

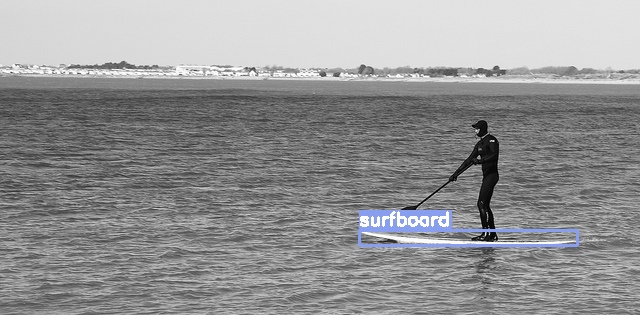

2. Visualization Verification Report: After running visualize_bbox.py, verification images generated in viz_debug directory. If boxes precisely frame objects (as shown below), data pipeline logic is correct.

Effect Image Generation:

Figure 4: Effect Image

5. Cost and Optimization (Cost & Optimization)

  • Resource consumption:
  • API cost: interleaved.py depends on external LLM API. Generating 10,000 multi-image comparison samples at \(0.5/1M Tokens costs ~\)20-$30.

  • Compute time: alignment.py is pure CPU; processing COCO validation set (5k images) takes seconds.

  • Scaling considerations:

  • Concurrent processing: When processing millions of images (e.g., Objects365), single-threaded image reading for (h, w) becomes bottleneck. Can introduce multiprocessing for 16 processes parallel read and convert.
  • Negative sample mining: Current code only generates "where is object" positive samples. For model robustness, extend code to generate negative samples like "Is there an elephant in the image? -> No."
