Chapter 12: RAG Data Pipeline¶

Chapter Summary¶

Retrieval-Augmented Generation (RAG) has become the preferred architecture for enterprise LLM deployment. However, many RAG systems shine in demo but fail in production due to low retrieval accuracy. This chapter reveals RAG's core truth: retrieval quality ceiling is determined by data parsing and chunking granularity. We delve into the "last mile" of unstructured data—document parsing—exploring PDF table restoration and multi-column recognition challenges; comparing semantic chunking and parent-child indexing; and analyzing Embedding model fine-tuning and vector database optimization critical paths.

12.0 Learning Objectives¶

Master unstructured parsing strategies: Learn to select correct parsing tools (Rule-based vs. Vision-based) for multi-column PDFs and complex tables.
Implement advanced chunking algorithms: Write Python code for "Parent-Child Indexing" strategy to solve context loss issues.
Build hybrid retrieval pipeline: Master combining Dense Embedding with BM25 keyword retrieval and RRF ranking fusion.
Evaluation and optimization: Learn to use RAGAS framework for retrieval quality evaluation and domain-specific Embedding model fine-tuning.

Scenario Introduction¶

The team's enterprise knowledge Q&A system finally launched. The CEO excitedly entered: "According to 2023 Q4 earnings report, what is our East China region's net profit?"

The system confidently answered: "According to the report, net profit is 15%." The CEO frowned: "I want the specific amount, not profit margin! And that's company-wide, not East China region."

As data lead, you urgently investigated logs and found the problem at the source: 1. Parsing error: The earnings PDF uses two-column layout; ordinary parsing tools read line by line, merging left column text with right column data, causing semantic chaos. 2. Table loss: East China data was in a cross-page table; parsing tools completely ignored table structure, turning it into garbled strings. 3. Chunk fragmentation: "East China region" header and specific numbers were split into different chunks; vector retrieval lost context association.

This "failure" scene reveals RAG's cruel reality: Garbage In, Garbage Out. If pre-training is "eating a full feast," RAG is "precision surgery." Any data parsing deviation is infinitely amplified in retrieval and generation stages.

12.1 Deep Document Parsing: Conquering the "Last Mile" of Unstructured Data¶

In RAG data flow, the hardest to handle often isn't pure text but PDF, PPT, and scanned documents carrying enterprise core knowledge. These formats are designed for "human reading"—extremely unfriendly to machines.

12.1.1 Complex PDF Processing: More Than Text Extraction¶

PDF is essentially a collection of drawing instructions, not structured data. Ordinary Python libraries (e.g., PyPDF2) can only extract text streams, unable to understand layout information.

Pain Point One: Multi-column Layout In academic papers and technical manuals, two- or even three-column layout is common. Simple text extraction reads across columns, generating meaningless concatenations like "left column first line + right column first line." The key to solving this is Layout Analysis. Modern tools (e.g., Microsoft's LayoutLM series) use vision models to first identify layout blocks, then extract text in reading order.

Pain Point Two: Table Restoration Tables are RAG's nightmare. Once tables are flattened to text, row-column correspondence is lost. * Rule-based: Use PDF line drawing instructions to rebuild grid (e.g., pdfplumber). Suitable for native PDF. * Vision-based: Convert PDF to images, use object detection models to identify cell structure, then combine OCR for content. This is the only approach for scanned documents and complex nested tables.

12.1.2 Parser Tool Selection Comparison¶

Facing complex enterprise documents, we need to build parsing pipelines based on document type and budget.

Feature	Unstructured (Open Source)	LlamaParse (Proprietary)	PyPDF/PDFMiner (Basic)
Core Principle	Rules + basic OCR hybrid model	Large model vision understanding (Vision LLM)	Extract underlying text stream
Table Handling	Medium (can identify table regions; complex headers prone to confusion)	Very strong (reconstructs as Markdown table, preserves semantics)	Poor (rows/columns completely scrambled)
Multi-column Recognition	Supported (detection model based)	Supported (native layout understanding)	Not supported (cross-column reading)
Cost	Low (local compute)	High (API per-page billing)	Very low
Use Cases	Simple Word/HTML, rule-fixed PDF	Complex earnings reports, scanned docs, nested tables	Pure text e-books

Recommendation: For core business documents (contracts, earnings reports), prioritize LlamaParse or Azure Document Intelligence; for massive ordinary documents, use Unstructured for cleaning to reduce cost.

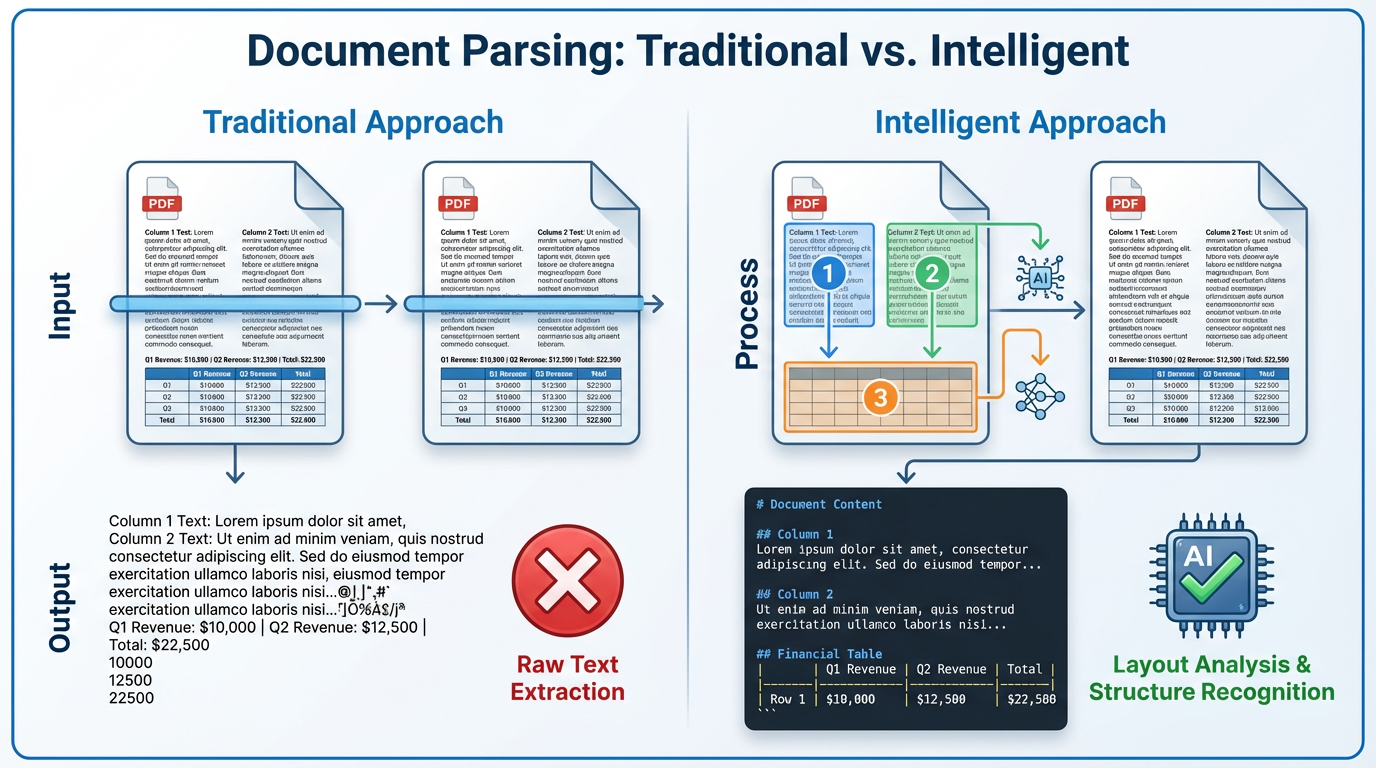

Figure 12-1: Traditional Parsing vs. Intelligent Parsing —— Intelligent parsing preserves multi-column order and table structure through layout analysis

12.2 Chunking Strategy: The Art of Balancing Context and Retrieval Granularity¶

After document parsing, we need to split it into model-processable chunks. Chunking strategy directly determines retrieval accuracy.

12.2.1 Basic Strategy: Recursive Character Splitter¶

The simplest method is fixed character count splitting (e.g., cut every 500 chars). But this often cuts complete sentences or logical paragraphs in half. Recursive chunking is the current baseline. It defines delimiter priority (e.g., \n\n > \n > . > ), prioritizing paragraph splits, then sentence splits. This preserves semantic integrity as much as possible.

12.2.2 Advanced Strategy: Semantic Chunking¶

Even recursive chunking can't judge whether two paragraphs discuss the same topic. Semantic chunking uses Embedding models: 1. Compute vector similarity between adjacent sentences. 2. Set threshold; when adjacent sentence similarity drops sharply (topic shift), split there. This method produces variable-length chunks but extremely high semantic purity, avoiding "one chunk contains half product intro and half after-sales policy" noise.

12.2.3 Advanced Strategy: Parent-Child Indexing¶

This is the ultimate weapon for resolving RAG's "retrieval granularity" vs. "generation context" contradiction. * Contradiction: Smaller chunks = more focused semantics, more accurate vector retrieval; but too small = lost context, LLM can't generate comprehensive answers. * Solution: 1. Split document into large chunks (Parent Chunk), e.g., 1000 tokens. 2. Further split each large chunk into small chunks (Child Chunk), e.g., 200 tokens. 3. Vectorize and index small chunks. 4. At retrieval, match small chunks but return the large chunk containing the matched small chunk to the LLM.

This "small-to-big retrieval" strategy (Small-to-Big Retrieval) ensures retrieval precision while providing sufficient context for generation.

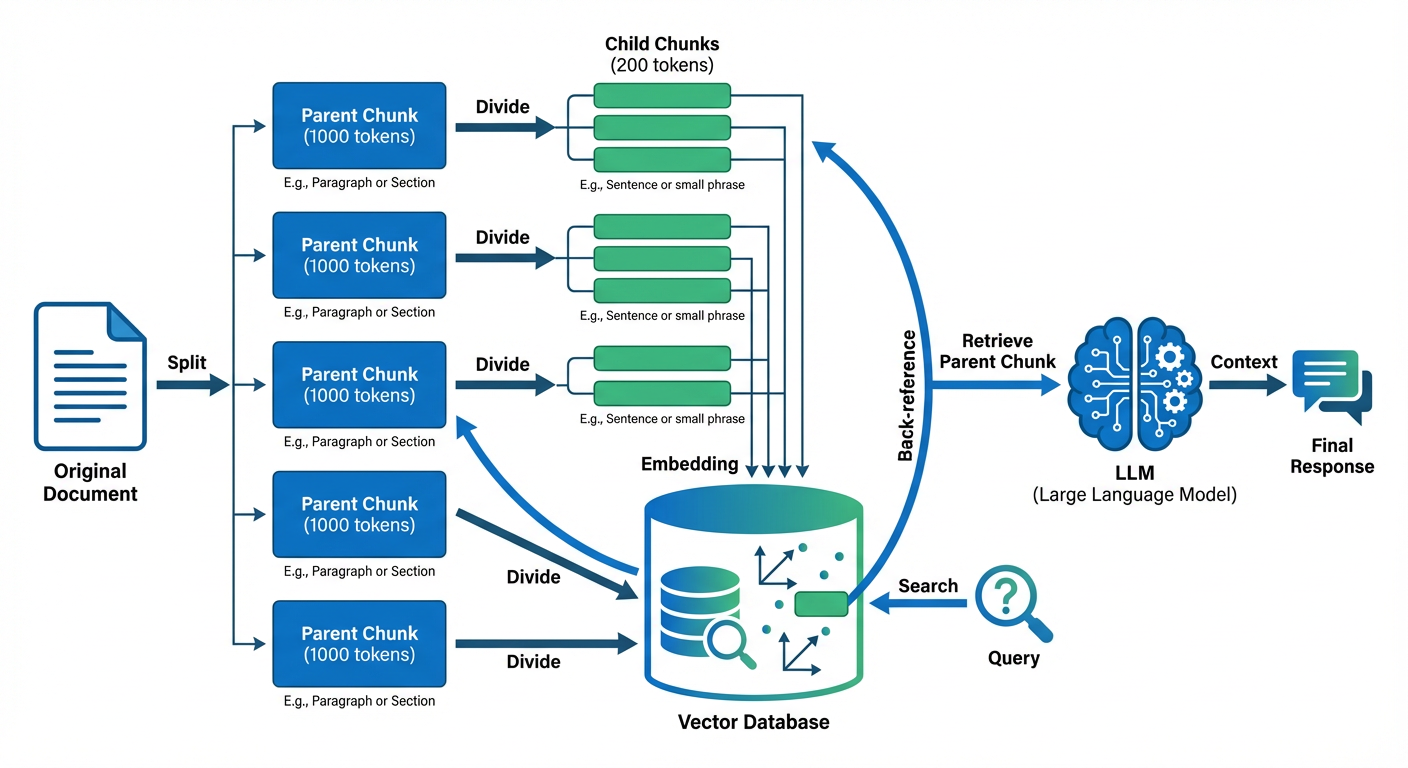

Figure 12-2: Parent-Child Indexing Mechanism —— Retrieved Child Node, actually return Parent Node, balancing precision and context

12.3 Vectorization and Storage: Teaching Machines Industry "Jargon"¶

After data chunking, convert to vectors via Embedding models and store in vector database. In this stage, general solutions often fall short.

12.3.1 Embedding Model Fine-tuning¶

General Embedding models (e.g., OpenAI text-embedding-3 or BGE-M3) are trained on general corpus. In vertical domains, they may perform poorly. E.g., in healthcare, "cold" and "fever" are semantically close in general sense but may point to completely different pathologies in diagnostic logic. Fine-tuning aims to adjust vector space distribution so similar professional concepts cluster closer. Typically uses Contrastive Learning loss:

\[ L = - \log \frac{e^{sim(q, d^+)/\tau}}{\sum_{i} e^{sim(q, d^-_i)/\tau}} \]

Where \(d^+\) is positive (correct document), \(d^-\) is negative (incorrect document). By constructing "query-relevant document" positive pairs and "query-irrelevant document" negative pairs for fine-tuning, can significantly improve domain-specific retrieval recall.

12.3.2 Vector Database and Hybrid Retrieval¶

Relying solely on vector retrieval (Dense Retrieval) has defects: it's insensitive to proper nouns, exact numbers, product models—keyword matching. Enterprise RAG must adopt Hybrid Search: * Vector retrieval: Capture semantic relevance (e.g., "apple" and "fruit"). * Keyword retrieval (BM25): Capture exact match (e.g., product ID "A123-X").

Using Reciprocal Rank Fusion (RRF) to re-rank both results combines strengths. Additionally, vector database selection (Milvus, Pinecone, Weaviate) must consider metadata filtering performance for pre-retrieval filtering like "year=2023" to greatly reduce computation.

12.4 Engineering Implementation: Building Parent-Child Indexing Pipeline¶

This section implements the core strategy mentioned—Parent-Child Indexing. We use Python to define a reusable processing class, simulating the full process from document loading to vector storage.

12.4.1 Dependencies¶

pip install langchain lancedb numpy unstructured

12.4.2 Core Code Breakdown¶

We don't directly call packaged high-level APIs but break down logic to understand data flow.

import uuid
from typing import List, Dict, Any
from dataclasses import dataclass

@dataclass
class Document:
    page_content: str
    metadata: Dict[str, Any]
    doc_id: str = None

class ParentChildIndexer:
    """
    Implements Parent-Child Indexing strategy:
    1. Parent Chunk: For storage and generation, preserves full context.
    2. Child Chunk: For vectorization and retrieval, ensures semantic precision.
    """

    def __init__(self, parent_chunk_size=1000, child_chunk_size=200):
        self.parent_size = parent_chunk_size
        self.child_size = child_chunk_size
        # Simulate vector database (KV Store + Vector Store)
        self.doc_store = {}  # Store Parent documents: {doc_id: content}
        self.vector_index = [] # Store Child vectors: [(vector, parent_doc_id)]

    def process_documents(self, raw_docs: List[Document]):
        """Step 1: Data processing pipeline"""
        for doc in raw_docs:
            # Generate unique ID
            if not doc.doc_id:
                doc.doc_id = str(uuid.uuid4())

            # 1. Store Parent Document (KV Store)
            self.doc_store[doc.doc_id] = doc

            # 2. Generate Child Chunks
            child_chunks = self._create_child_chunks(doc)

            # 3. Vectorize and build index
            self._index_children(child_chunks, doc.doc_id)

    def _create_child_chunks(self, parent_doc: Document) -> List[str]:
        """
        Step 2: Chunking logic
        Simplified to fixed character split here; production recommend RecursiveCharacterTextSplitter
        """
        text = parent_doc.page_content
        children = []
        for i in range(0, len(text), self.child_size):
            end = min(i + self.child_size, len(text))
            children.append(text[i:end])
        return children

    def _index_children(self, children: List[str], parent_id: str):
        """Step 3: Vectorization logic (pseudocode)"""
        for child_text in children:
            # Simulate Embedding process
            # vector = embedding_model.encode(child_text)
            vector = [0.1, 0.2] # Placeholder

            # Key: Store Parent ID in Child metadata
            self.vector_index.append({
                "vec": vector,
                "text": child_text,
                "parent_id": parent_id
            })

    def retrieve(self, query: str) -> List[Document]:
        """
        Step 4: Retrieval logic (Small-to-Big)
        Retrieve matching Child -> Return Parent
        """
        # 1. Vector retrieval finds Top-K Children (simulated)
        # top_children = vector_db.search(query)
        # Note: Example only; should sort by vector similarity
        top_child = self.vector_index[0] # Assume first match

        # 2. Trace back to Parent
        parent_id = top_child["parent_id"]
        parent_doc = self.doc_store.get(parent_id)

        print(f"Retrieved chunk: {top_child['text'][:20]}...")
        print(f"Traced parent doc ID: {parent_id}")
        return [parent_doc]

# --- Usage Example ---
indexer = ParentChildIndexer()
doc = Document(page_content="RAG system core lies in data quality..." * 50, metadata={"source": "manual.pdf"})
indexer.process_documents([doc])
result = indexer.retrieve("data quality")

12.4.3 Pro Tips¶

💡 Tip: ID Management is Critical In production, doc_id must be deterministic (e.g., hash(file_path + update_time)). Otherwise, when source files update and re-run, vector database will accumulate large amounts of undeletable "zombie chunks."

12.5 Performance and Evaluation (Performance & Evaluation)¶

RAG performance isn't just "answer accuracy"—it includes index build cost and retrieval latency.

12.5.1 Evaluation Metrics¶

Metric	Description	Target (Reference)
Hit Rate (Recall@K)	Proportion of top K retrieved documents containing correct answer	> 85%
MRR (Mean Reciprocal Rank)	Ranking weight of correct document in retrieval list	> 0.7
Faithfulness	Whether generated answer faithfully reflects retrieved context (anti-hallucination)	> 90% (RAGAS based)

12.5.2 Benchmarks¶

We tested on server (Dual Xeon 6226R + 1x RTX 3090) with 10,000-page PDF docs (mixed text and tables):

Parsing time (Unstructured):
- CPU only: 28 minutes
- GPU accelerated (OCR): 11 minutes (2.5x speedup)
Retrieval latency (10M vectors):
- Pure Dense retrieval: 9ms
- Hybrid retrieval (Dense + Sparse + RRF): 45ms
- Conclusion: Hybrid retrieval adds latency but for high-precision scenarios (e.g., contract review), 36ms extra overhead is fully worth it.

12.6 Common Misconceptions and Pitfalls¶

Misconception 1: "PyPDF is enough for PDF parsing"¶

Many beginners underestimate PDF complexity. For earnings reports or manuals with charts and multi-columns, simple text extraction causes serious information loss. Recommend introducing Layout Analysis tools at project start.

Misconception 2: "Smaller chunks are better"¶

Oversmall chunks improve retrieval cosine similarity but cause "out-of-context." LLM lacks sufficient context to infer correct answers.

Misconception 3: "Ignoring metadata"¶

Storing only text vectors without metadata (filename, page number, publish date) prevents time filtering or source tracing, reducing system usability.

Chapter Summary¶

RAG's core competitiveness lies in data processing precision. This chapter parsed RAG data pipeline's three major checkpoints: 1. Parsing checkpoint: Must understand document structure from visual level, solving table and multi-column issues. 2. Chunking checkpoint: Move beyond single fixed splitting; adopt parent-child indexing or semantic chunking to balance retrieval precision and context integrity. 3. Retrieval checkpoint: Adapt Embedding models to domain knowledge through fine-tuning; combine hybrid retrieval to compensate for vector matching limitations.

With these in place, your RAG system evolves from "usable" to "useful."

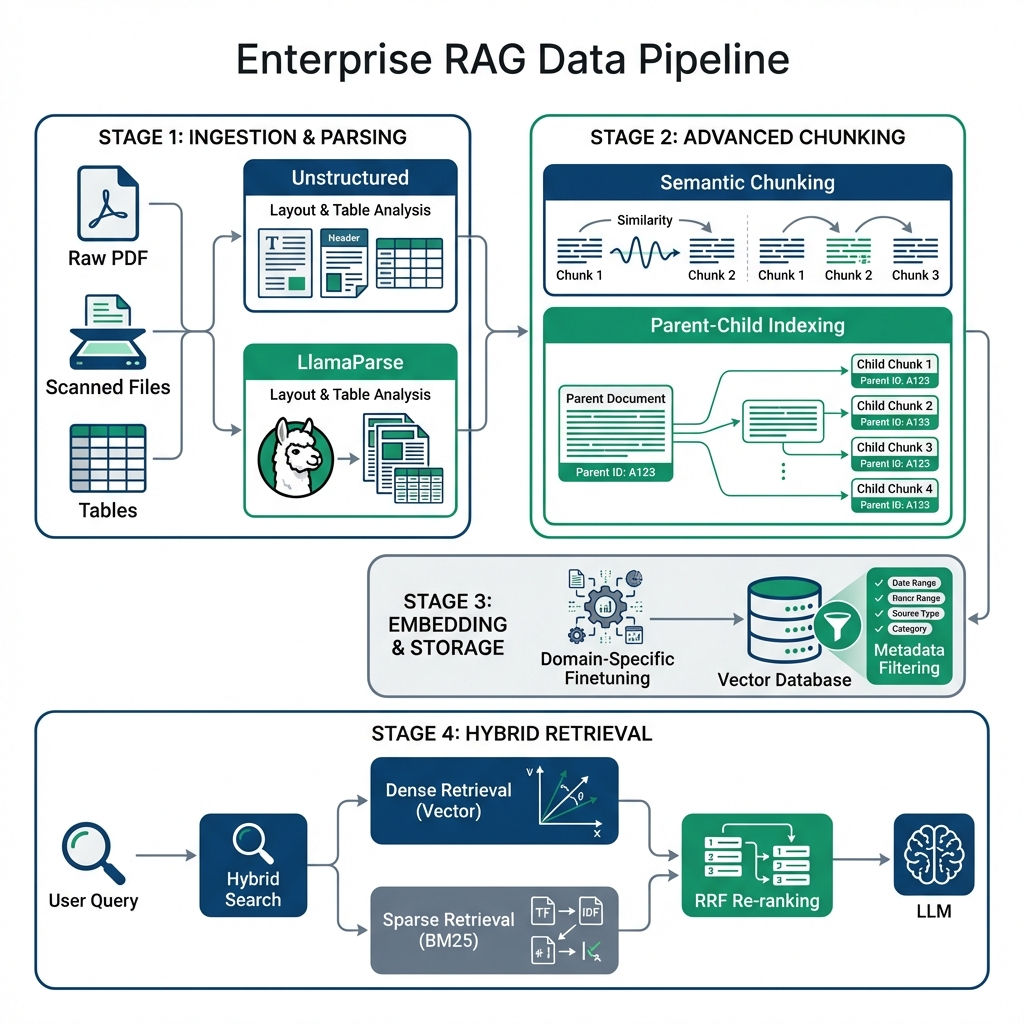

Figure 12-3: Enterprise RAG Data Pipeline Architecture —— Emphasizing full-flow optimization from unstructured parsing to hybrid retrieval
